Power your gear anywhere with the GaiaRay Electric 500W Portable Solar Power Station, giving you reliable, safe energy on the go.
460Wh LiFePO4 battery delivers up to 500W continuous output, giving you dependable runtime for your laptops, cameras, routers, and other small essentials.

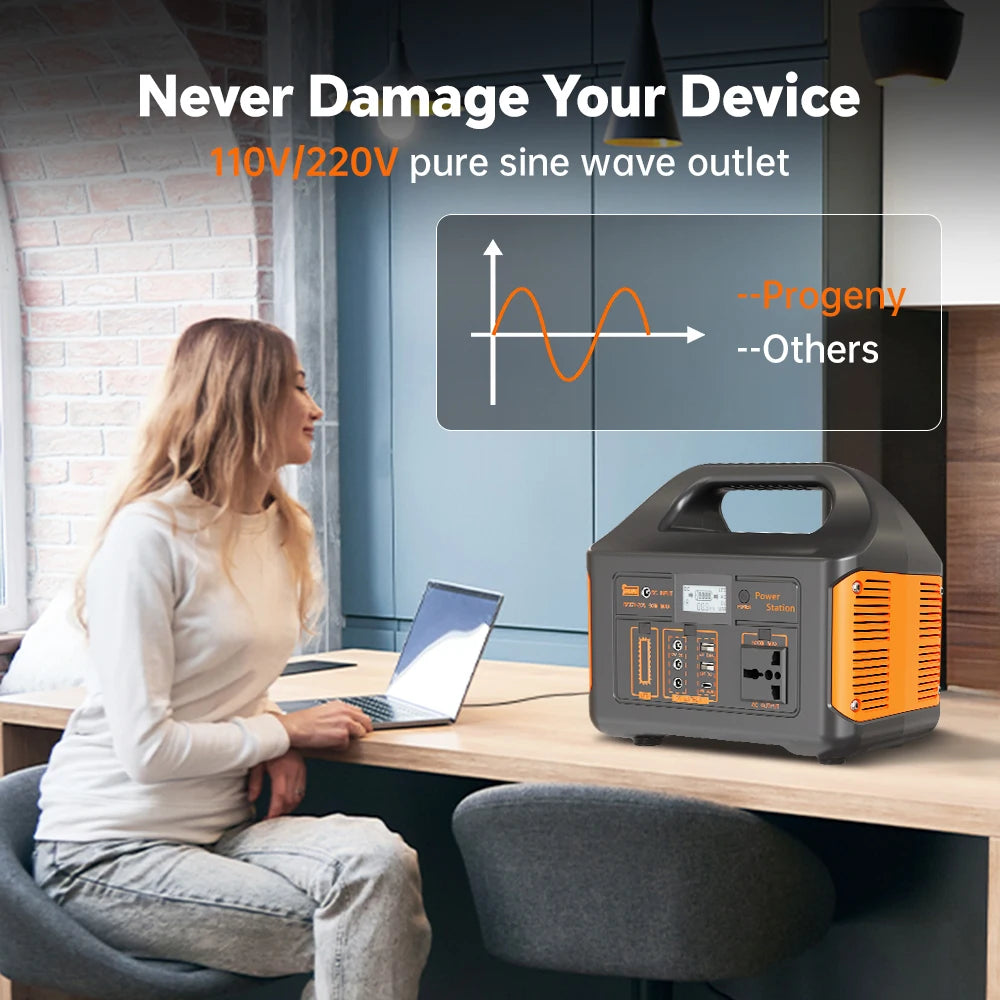

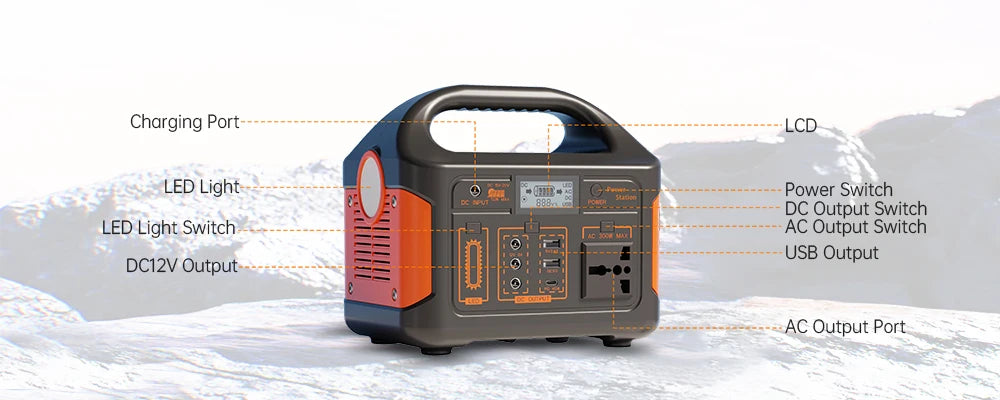

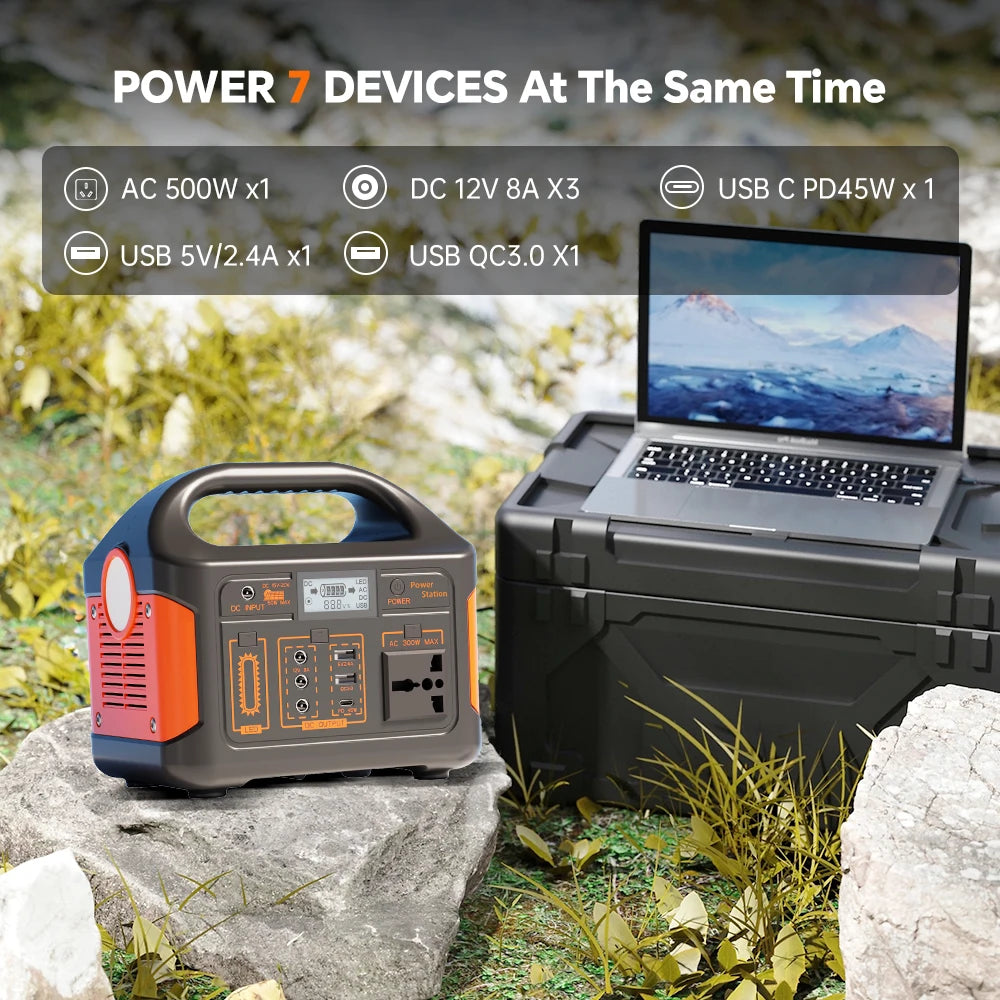

Pure sine-wave AC output (110V/220V, 50/60Hz) with ports you can count on: 2 USB, 3 DC5521, DC12V outlets, plus QC 3.0 and PD 45W for your devices.
Solar charging uses a built-in intelligent controller; it accepts 15–20V panels up to 90W with up to 6A charging, and you’ll see battery voltage and state of charge on screen.
Smart cooling and safety: a temperature-controlled fan stays quiet (under 45 dB at 1 m), while protections guard your setup against low/high voltage, overload, over temperature, and short circuits.
Rated Power
100W
300W
500W
Output Waveforr
Modified sine wave
Pure Sine Wave
AC Output Voltage
110V,220V
AC Output Frequency
50Hz/60Hz ± 0.5Hz
Conversion Efficiency
Maximum Value>90%
Charging interface
Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller)
AC Output Socket
Universal Socket
DC Output Voltage
DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port
LED Light States
LED bright, half bright, flashing,LED off 4 states
LED high beam,low beam. Bight, half Bight, fishing LED of 6 states

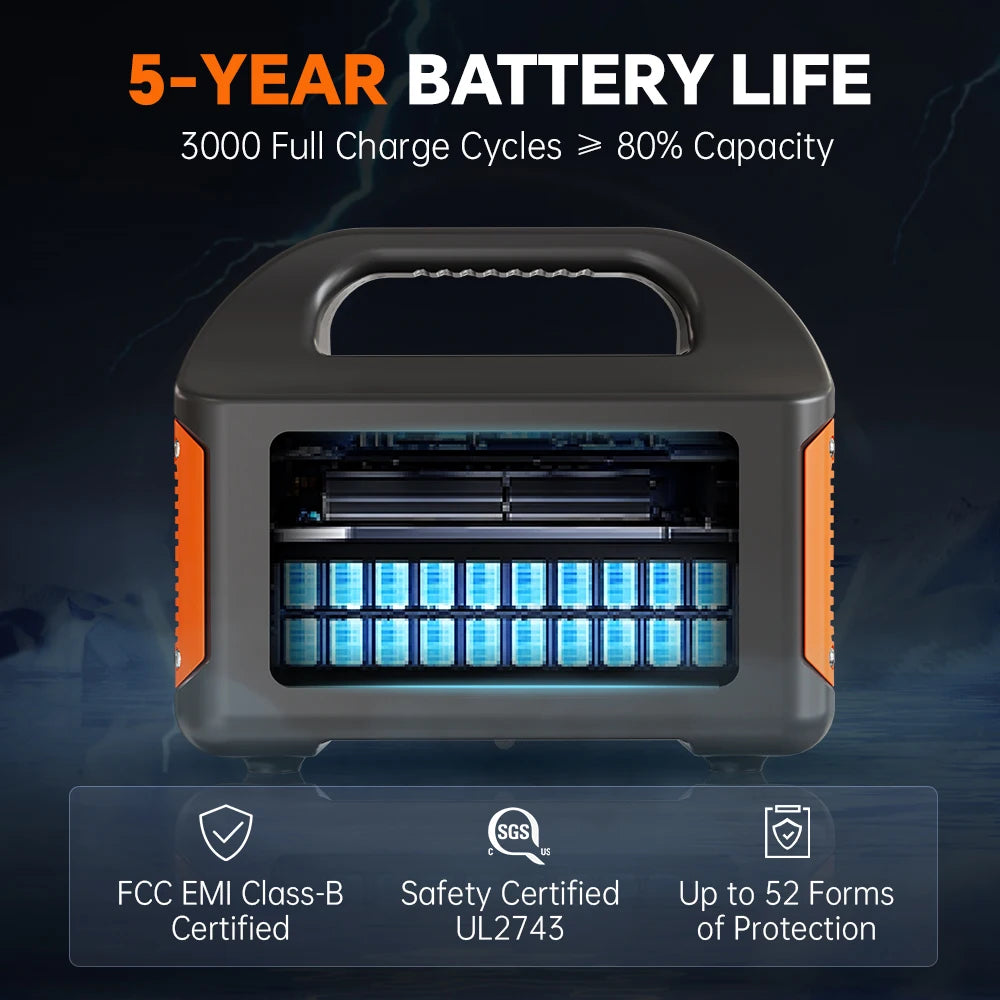

Battery Type
LiFePO4
Battery Capacity
76.8Wh
230Wh
460Wh

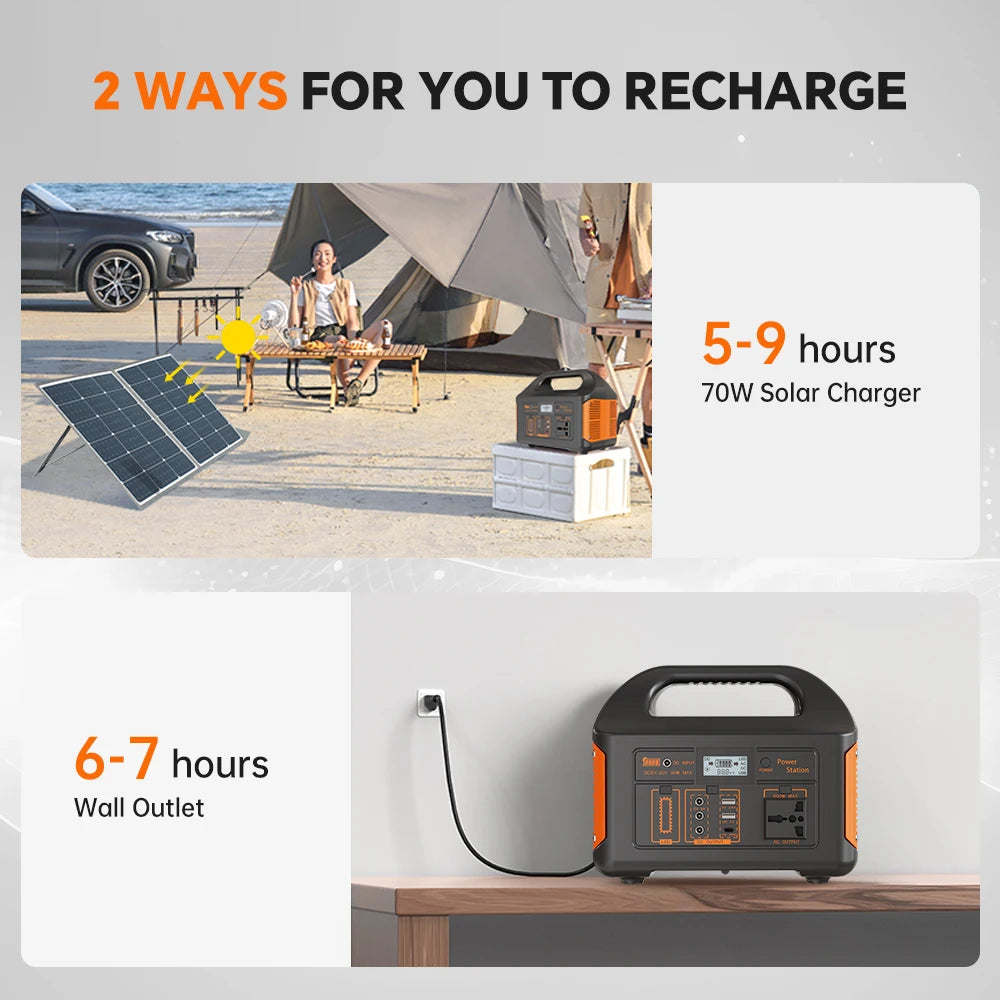

Solar panel charging
15V-20V Max 30W
15V-20V Max 50W
15V-20V Max 90W
Charging Current
Maximum Value 2A
Maximum Value 2.5A
Maximum Value 6A
AC Charqer Specifications
5v 2A
14.6V 2A
16V 5A

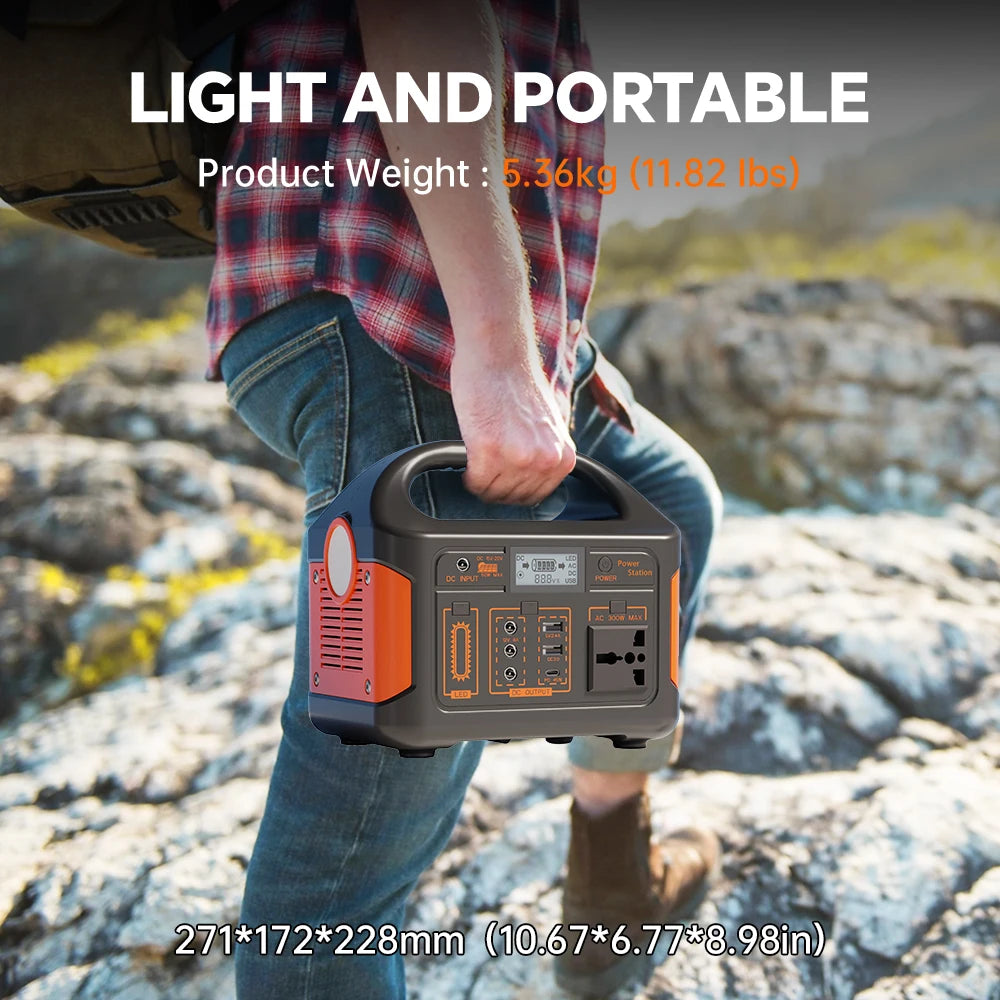

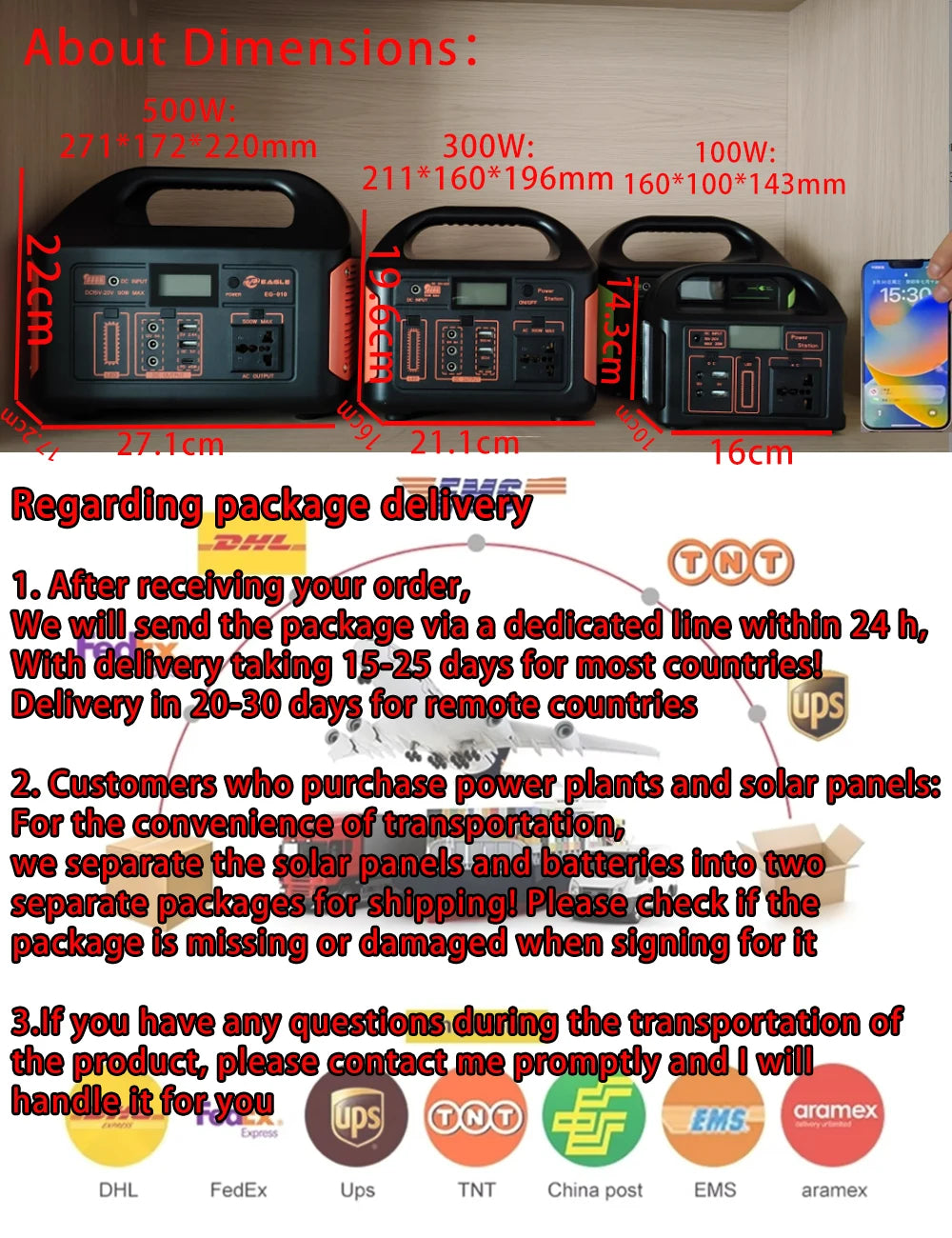

Product size (mm)
160*100*143mm
211*160*196mm
271*172*220mm
Outer packaging size (mm)
200*100*150mm
260*160*200mm
300*200*260mm
Charging Time
After full discharge,the battery capacity reaches 80% after 5 hours OT
LCD
Battery Voltage, State of Charge, State of Charge, State of Discharge
Heat Dissipation
Intelligent Temperature Control Cooling Fan
Noise
1Meter Distance <45dB
Protection Functions
Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit
